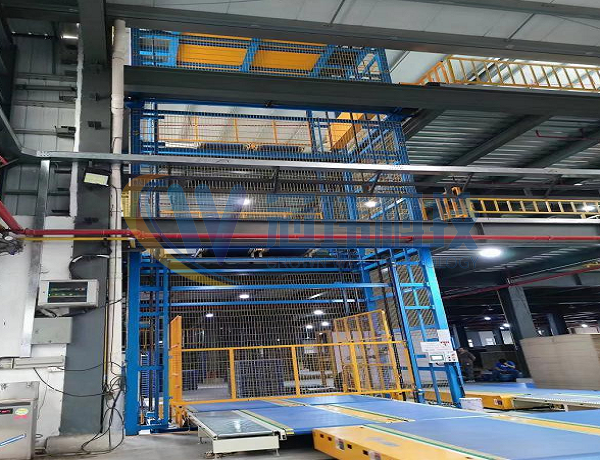

Vertical Lifter With Modular Convey Platform

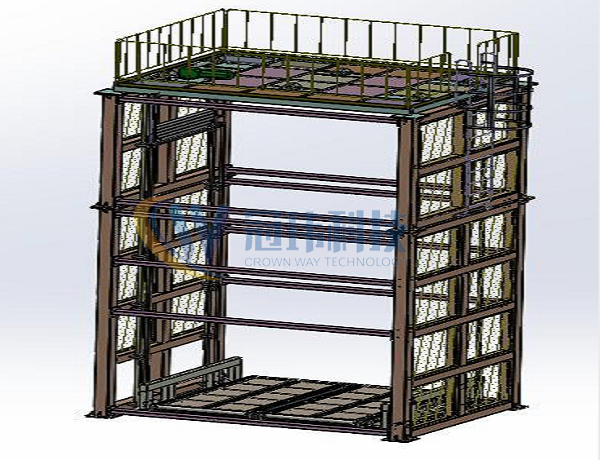

Automatic vertical elevator: L4000 X W3680, height customized according to the actual size;

Specification: collocation module delivery platform W2400 X L2900 X H350;

Equipment material: good quality steel welding;

Belt: plastic module conveyor mesh belt, pitch 25.4 mm, POM material;

Conveyor belt retainer: polymer polyethylene wear-resisting;

Mode of transmission: the head or intermediate driver, which can run positive &negative;

Material: 4 mm hot plate laser cutting, bending, surface paint or coating process;

Transmission shaft: 60 * 60 * 5 mm rectangular tube welding;

Lead wheel: ￠89 * 5 mm seamless tube lathe finishing, and has static balance processing.

Power: motor transport: 1.5 KW. Lifting: 7.5kW;

Brand: motor birrell SUPROR speed;

Conveying speed: frequency conversion control Max 25 m/min.

Electricity control, PLC automatic control program, photoelectric switch conveyor end fall prevention protection;

Load rating: 3 T

Security measures: the elevator in the lowest and highest point has two way trip switch, when the elevator reaches where we are going to need, will automatically stop.
