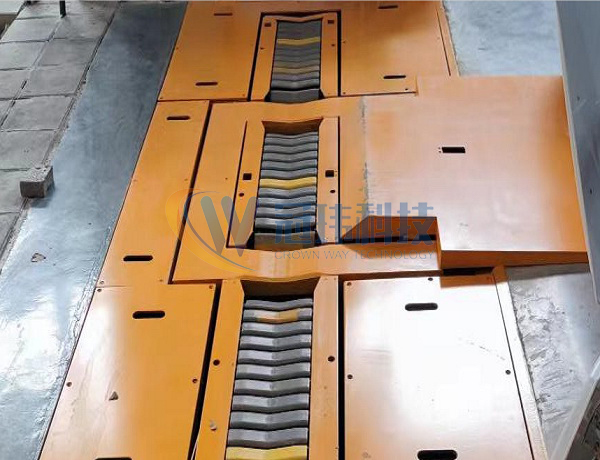

Three-stage chain machine

1. Equipment material :

                               - Main frame : high quality Q235A steel with laser cut and welded, surface paitting treatment .

                               - Conveyor : V chain , V = 170°Length = 250mm , Width = 55mm ,Thickness = 8mm

                               - Lubricating device : The V-shaped chain roller is equipped with bearings and the grease is lubricated

                                                                  in the inner cavity of the roller to make the operation more flexible .

2. Transfer speed : 24m/min .

3. Bearing brand : TR/NTN

4. Motor : Made in China


   5. Functional : Used in production line raw paper logistics conveying system, and the original paper roll is

                          transported to the next process station according to the system instruction.
