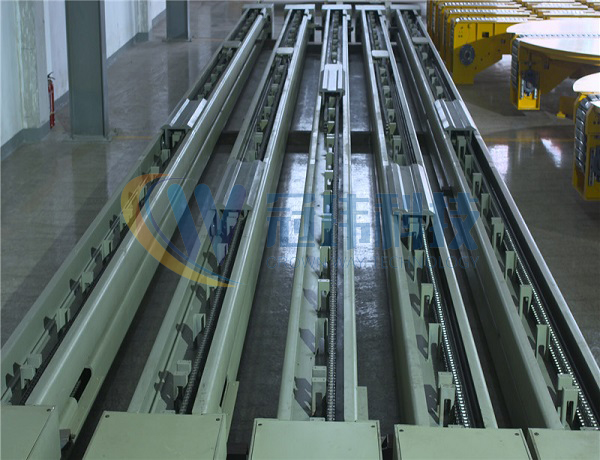

Raw paper feeding track

Features :

1. Compact structure, rich function configuration and less space occupied can be conducive to satisfy the application requirements of

   frequent order change and high-speed corrugated paper production line

2. The separation between paper feeding and retracting areas will make it easier to convey base paper roll in corrugated paper production

    line efficiently .

3. Track length can be determined by the customer’s order structure and plant space

4. Two paper trolleys, respectively for paper feeding and retracting

5. Gear motor + chain drive mode will, on the premise that the operation requirements are met, feature higher safety and easier maintenance,

    compared to hydraulic motor + chain drive mode

6. Hydraulic paper holding will be more convenient to make paper feeding and roll centered, and base paper holder aligned with paper element

    more  easily

7. Auto steering device for paper retracting at 90 ° will, compared to electric turntable, be characterized at simpler structure, more convenient

    installation and maintenance, no additional power energy as well as lower costs

8. Invisible pneumatic buffer stopper (optional) will prevent the roll from being easily damaged

9. Plastic chain conveyor (optional) features simpler structure, easier maintenance and lower cost

10. Auto base paper roll conveyor (optional) could save manpower and improve efficiency

11. Full-auto base paper holder, if any, can be used to feed, center and unload base paper roll automatically .

Parameters :

1. Trolley running speed: 17 m / min

2. Maximum weight of roll carrying: 4500kg

3. Maximum weight of roll carrying for each chain retracting conveyor: 10000KG

4. Maximum web of base paper roll: 2800mm

5. Maximum diameter of hydraulic holding roll: 1520mm

6. Paper feeding conveying time: it varies according to the distance between hydraulic holding feeding and center of base paper holder,

    generally about 40s (a distance of 7.5m)

7. Paper unloading conveying time: according to the distance between the center of base paper holder and retracting trolley stop location,

    generally about 22s (a distance of 6m)

8. Paper retracting conveying time: it varies according to the length of chain conveyor, generally about 6-7min (a distance of 6m, the length of 72m)

9. Operator requirements: 3-5 persons, 2-3 persons (auto base paper roll convey)

Functional :

1. Necessary to base paper holder, used to convey base paper

2. One-time bending formation by steel sheet, other than welding by ordinary section steel, with more stable structure

3. Double station, equipped with imported hydraulic motors respectively for paper feeding and retracting
